120.0m² 8kW Heatpump & Underfloor Heating System

ThermRite & Midea: the perfect heating combination

Underfloor Heating System Coverage: 120.0m² (150mm centre to centre pipe spacing)

Midea is one of the world’s largest home appliance brands, offering the most comprehensive selection of products in the world to fully serve the needs of day-to-day living at home, at work, or anywhere else you go. The Midea Heatpump provides an energy efficient solution that delivers space heating and cooling and domestic hot water. It is a complete all-year-round, integrated heating system which can replace, or work in synergy with traditional gas or oil boilers

The included Midea Heatpump is sized specifically to operate seamlessly for this size floor area. It is assumed that the install will be within a new build or a renovation project with insulation values equivalent to that of a new build UK home. If your home is not insulated to new build standards then contact us and we can design accordingly.

WHY CHOOSE A MIDEA HEATPUMP:

• High seasonal efficiency A+++ ErP Energy Rating at a 35-degree flow temperature which puts this heat pump in a class of its own!
• Sleek modern design
• Full range from 4kW to 16kW (12,14 +16kW available in 3 phase)
• Maximum sound power ≤60dB(A), rated sound power ≤58dB(A)
• Silent Chamber – only 35 Db(a) sound pressure level at 3 metres
• Maximum outlet water temperature 65°C
• Continuous water supply temperature, 60°C even as low as -20°C
• Efficient heating capacity even when at -7°C air temperature
• Energy consumption data for running cost analysis
• DC inverter compressor, fan motor and pump to allow precise control
• Program upgrade via USB port on system PCB
• WiFi/App control as standard
• Advanced intuitive controlS

EASY INSTALLATION – it’s all in the box

To make installation as easy as possible, the Midea M Thermal range comes with a circulation pump, expansion vessel and wiring centre built into the outdoor unit. Furthermore, installation time is much quicker and easier as there is no need for refrigerant piping, and the product is pre-charged at the factory. The two-door design allows for easy access to internal components for easy maintenance.

SUPERB BACK UP AND SUPPORT: With Mi-Cloud, ability to dial in to the M Thermal from anywhere in the world to understand any issues with the heat pump which can prevent unnecessary site visits for diagnosis purposes.

System Includes-
Heatpump:

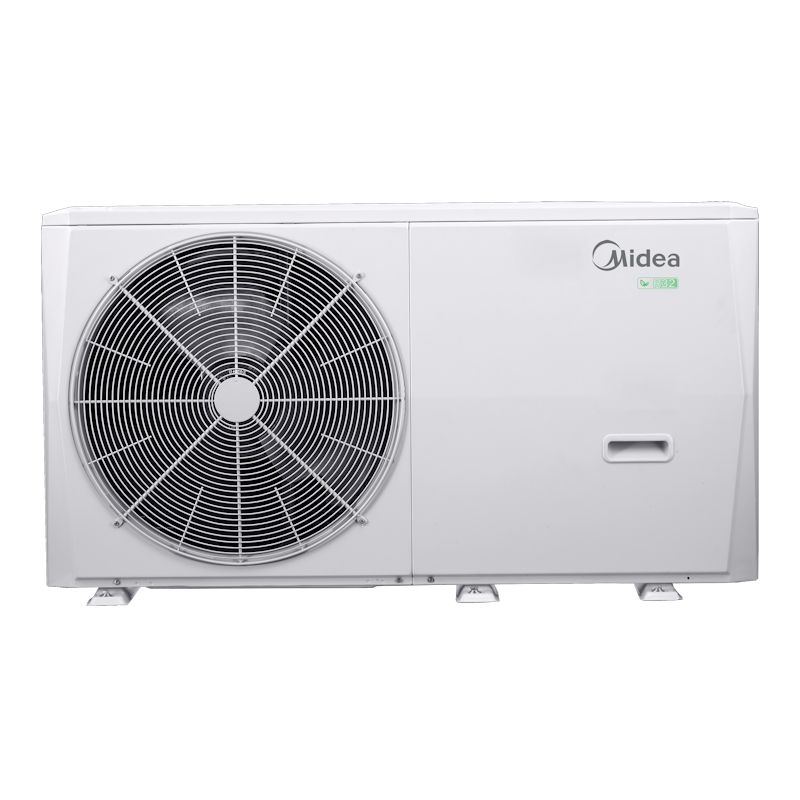

• 8.0kw Midea R32 Monobloc Heatpump
• 50Ltr Insulated Buffer – Wall or Floor mounting
• Grundfos Pump 25/7 with Cable, Valves and Washers
• Flow Meter/Setter Complete Flush and Fill Points inc. Fittings
• Tesla T-Smart Retrofit Head
• Flexi-Hose Pre-Insulated 28mm dia (pair)
• 28mm 3 Port Diverter Valve Honeywell
• 32Amp Rotary Isolator
• 28mm lever ball valve (red & blue)
• Auto Air Vent 15mm
• Electric Meter for Standard Installs
• Part 4. – GS 1″ BSPM to 28mm Compression
• Outdoor Feet x3
• Thermablend TX Glycol Blend in 25ltr Tub

Underfloor Heating:

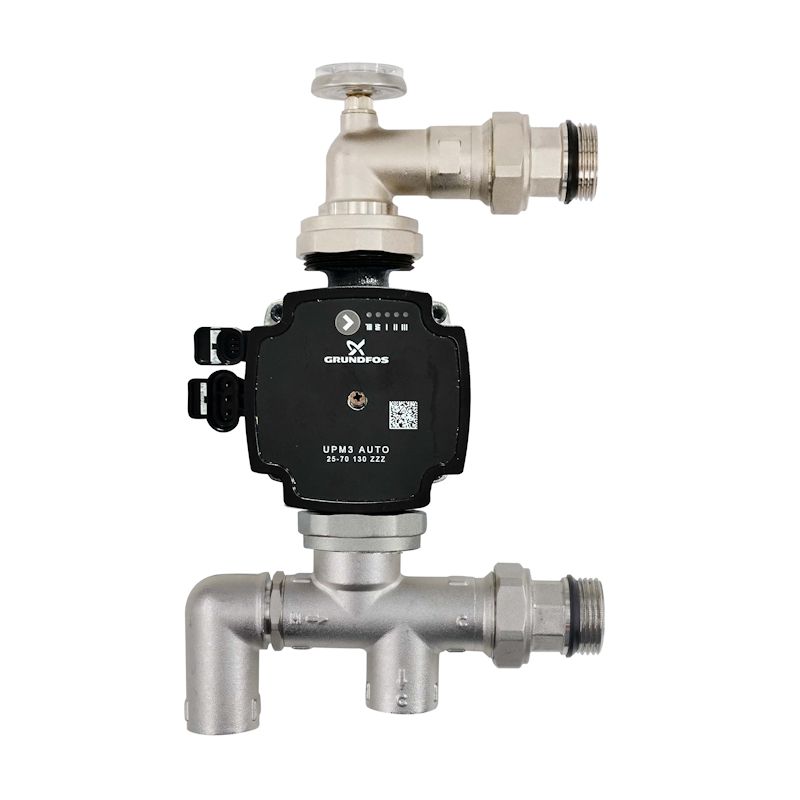

• “A” Rated Low Energy Grundfoss 3 Speed Circulation Pump
• 5 Layer Professional Grade European Standard 16mm Underfloor Heating Pipe x 800 metres

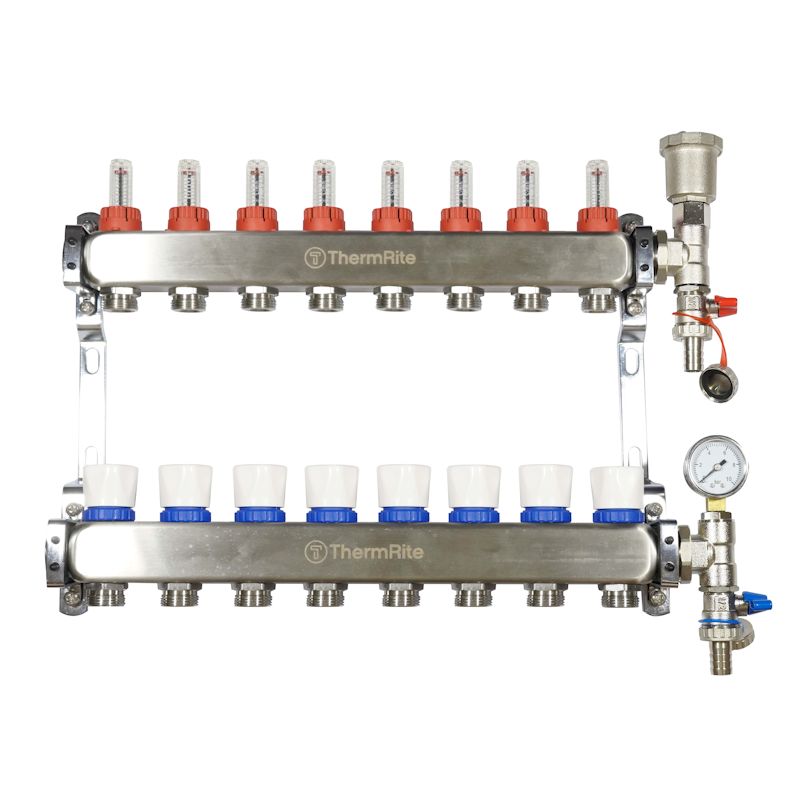

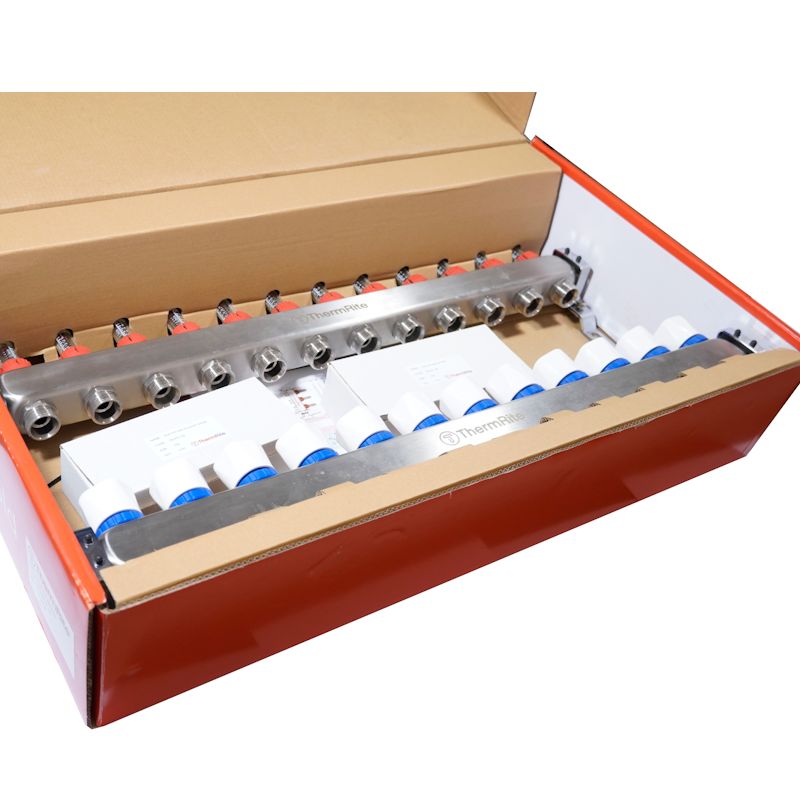

• 8 Zone Dualmix Manifold – Including: Manifold Isolating Valves x 2 – Temperature Gauge x 2 – Lockshields with flow meters on each port – Drain/fill valves with blank cap x 2 – Automatic air vent x 2 – Metal fixing brackets x 2
• Perimeter Insulation Roll x 50 metres
• Pipe Reaming Tool
• Pipe Cutter
• Pipe Clips x 800
• Pipe Connector Cores x 16
• CAD Pipe Layout Plan & Installation Manual
