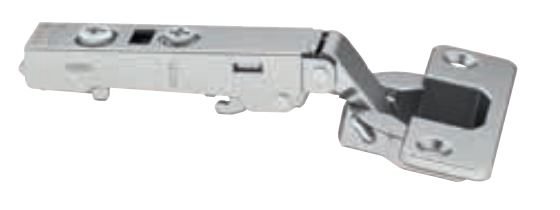

HAFELE 311.04.248. Concealed Hinge Soft Close Metalla Overlay (HINGE)

Concealed Cup Hinge, Metalla range, 110deg Integrated Soft Close, Full Overlay Door Mounting, with Standard Depth Adjustment

Screw fixiing cup, quick fixing arm, 45/9.5 mm screw pattern.

Order mounting plate seperately.

35 mm dia cup
Soft closing
Drilling pattern: 45/9.5 mm
Adjustment facility: Side adjustment 3mm. Height adjustment 2mm (via mounting plate). Depth adjustment + 2 mm
Overlay: Full
Hinge arm: Quick fixing
Cup fixing: Screw fixing
Type of closing: With integrated soft close
For door thickness: 14-26 mm
Opening angle: 110 deg
Drilling depth: 12 mm
