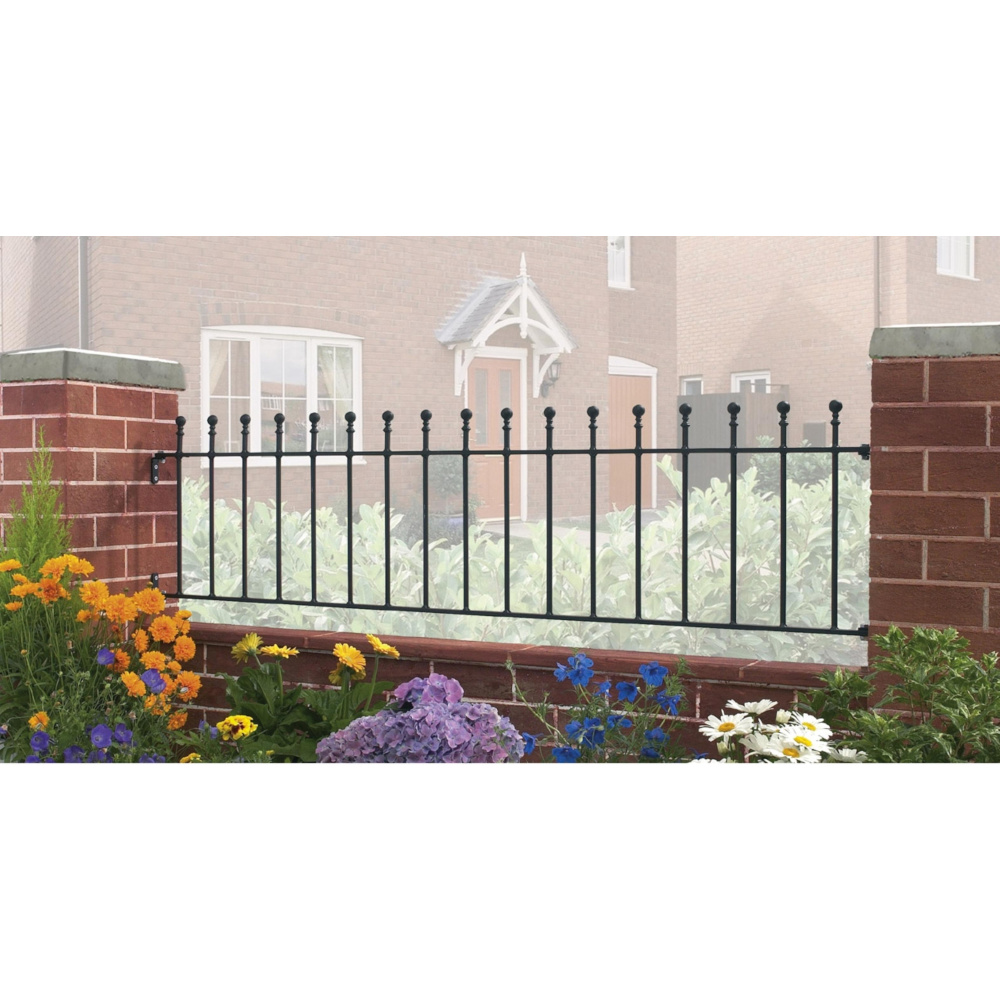

Manor Flat Metal Railing Panel

Manor Ball Top Metal Garden/Wall Railing panels.
• Solid steel construction.
• Frames 25mm x 10mm.
• Infill bars 12mm diameter.
• Fittings included for easy installation onto brickwork, metal or timber posts (no screws or wall plugs included).
• Made-to-Measure is available in this range, please call for a quote.

Finish
MA03 is only powder coated black.
MAZP03 is electro-galvanised for added rust resistance and powder coated black

Fits a total post to post GAP of 1830mm (6ft). Frame height is 360mm and 455mm to top of ball finial. We already account for the hinge gaps within the width measurement listed. The finish must be inspected periodically and any chips paint touched up, particularly on the powder coated MA03 version. The upgraded electro galvanised MAZP03 version must still be inspected periodically and any chips paint touched up. Note: the galvanising is not a 100% rust proof guarantee. Like any outdoor metal product, it may need to be painted every couple of years to ensure long life.
Fittings included; comes with angle brackets and bolts. (No screws or wall plugs included) Nuts and bolts must be painted after fitting to prevent the onset of rust.

Optional 50mm square x 500mm long bolt-down metal posts, select either BP50X500ZP POST for blank flat top or BP50X500BZP POST for blank ball top posts. (on site drilling will be required, bolts not included)
Note: The pre-drilled CLEARANCE posts may not have the holes drilled for a perfect fit. This is due to acceptable tolerances in the metal, so there may be small gaps. The cheaper price reflects that you may need to re-drill holes. ZP in the code means the post is electro-galvanised for added rust resistance and powder coated black, otherwise just powder coated black.
