Fluke 77 IV Digital Multimeter

Fluke 77 IV Digital Multimeter

The Fluke 77 IV Digital Multimeter stands out as an advanced tool tailored for both field service technicians and bench repair professionals. This latest model from Fluke incorporates several improvements over the 70 Series, such as additional testing capabilities and a substantially larger, backlit display that enhances visibility in various lighting conditions. This meter is easy to use, equipped with both automatic and manual ranging options, and adheres to the latest safety standards, making it a top choice for professionals seeking a reliable and efficient tool for diagnosing and repairing electrical and electronic problems.

Precision Engineering for Reliable Measurements

The Fluke 77 IV is engineered for precision, providing highly accurate readings across a wide range of measurement functions. Capable of testing AC/DC voltage up to 1000V and handling AC/DC current up to 10A, this multimeter is indispensable in a professional’s toolkit. The device supports advanced functionalities such as frequency, capacitance, resistance, and continuity testing, ensuring comprehensive diagnostic capabilities. It also features ergonomic enhancements, including an overmolded housing with integrated probe holders and the option to use a magnetic hanger for added convenience during hands-free operation.

With its large 6000 count LCD display equipped with a backlight, the Fluke 77 IV allows clear and easy reading of measurements, even in dimly lit areas. The unit’s ergonomic design ensures it is comfortable to hold and use over extended periods, while the robust casing protects it against the rigours of daily use. Safety is paramount, and this multimeter meets stringent CAT III 1000V and CAT IV 600V safety ratings, providing peace of mind for users working in potentially hazardous environments.

Key Features

• AC/DC current measurement up to 10A
• Resistance up to 50MΩ
• Capacitance detection up to 9999μF
• CAT III 1000V and CAT IV 600V safety ratings
• Large 6000 count backlit LCD display
• Automatic and manual ranging options
• Min/Max record function
• Ergonomic design with integrated probe holders
• Optional magnetic hanger for hands-free operation

Measures

• 0.3% accuracy
• 10 Amps continuous (20A for 30 seconds)
• Frequency and capacitance
• Resistance and continuity

Technical Specifications

• Voltage Measurement: Up to 1000V AC/DC
• Current Measurement: Up to 10A AC/DC
• Resistance Measurement: Up to 50MΩ
• Capacitance Measurement: Up to 9999μF
• Safety Ratings: CAT III 1000V, CAT IV 600V
• Display: 6000 count LCD with backlight
• Frequency Measurement: Included
• Continuity and Diode Test: Audible
• Power: Battery operated with sleep mode

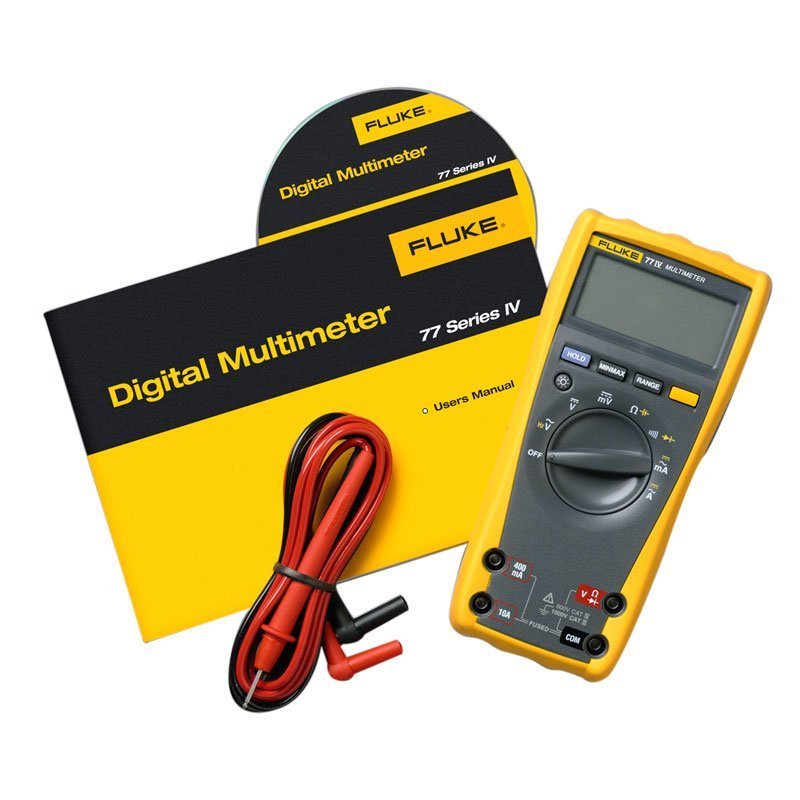

What’s Included

• Fluke 77 IV
• TL75 Test Leads
• Manual
• 9V Battery Installed
