Fluke SMFT-1000 Solar Multifunction PV Analyser & I-Curve Tracer (Choice of Kit)

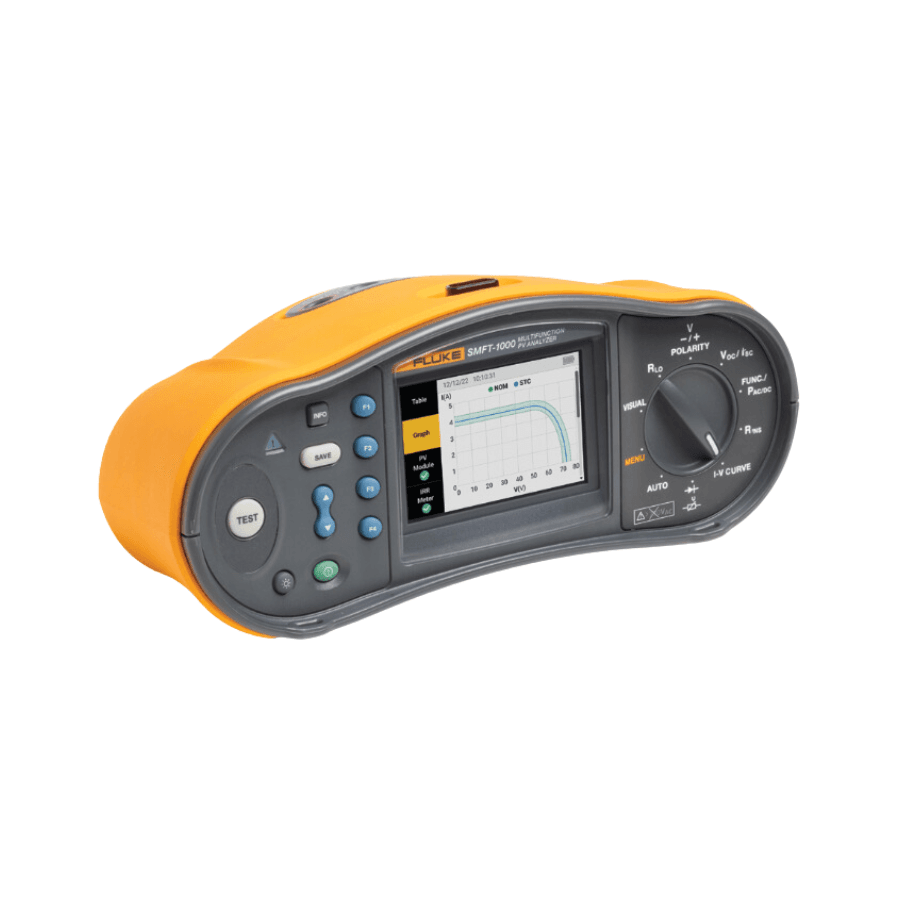

Fluke SMFT-1000 Solar Multifunction PV Analyser

The Fluke SMFT-1000 Solar Multifunction PV Analyser and I-Curve Tracer offers a comprehensive testing solution for PV professionals working on systems that operate at up to 1000V DC. Designed to meet IEC 62446-1 standards, this device ensures both performance verification and safety compliance for photovoltaic systems. Its robust functionality, from short-circuit current measurements to I-V curve tracing, allows users to efficiently evaluate the performance of PV modules and strings without needing additional equipment or software on-site.

This standard version comes equipped with an I-V curve tracer that provides immediate results, allowing users to compare measured data to manufacturer specifications directly on the analyser’s screen. The integrated Fluke TruTest™ software facilitates seamless data management and reporting, making the SMFT-1000 a time-saving tool for professionals focused on accurate and reliable testing of solar systems.

Critical Features for Solar Testing

The SMFT-1000 offers advanced testing capabilities, including full-sequence safety checks and system performance assessments. Its wireless irradiance meter provides real-time data, ensuring precise I-V curve measurements, even if the connection is interrupted. The “Keep the Leads” system reduces downtime and errors, making it easier to carry out multiple tests in the field without constant reconfiguration of equipment.

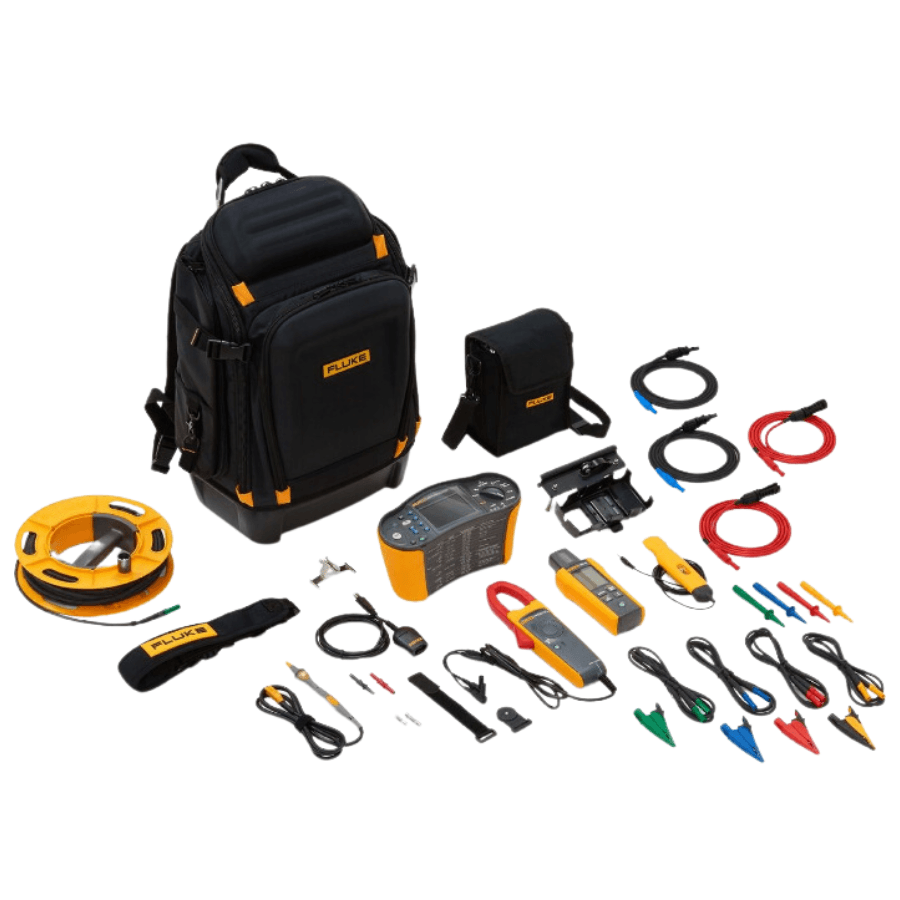

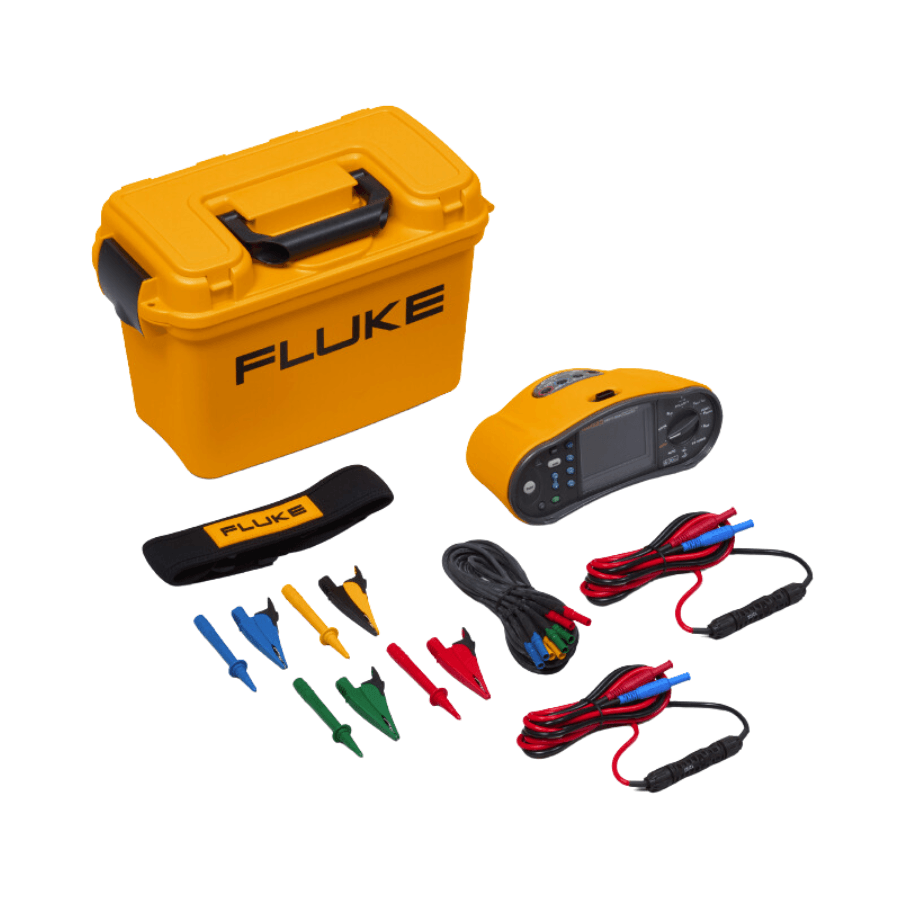

Users can choose between three kit options: Lite, Standard, and Pro. This description refers to the Standard Kit, which includes all the essentials for efficient and accurate PV system analysis.

Data Management and Reporting

With Fluke’s TruTest™ software, users can easily import, organise, and analyse solar testing data, generating clear and comprehensive reports. The software enables users to compare I-V curve measurements over time, allowing for ongoing monitoring of PV system performance and easy identification of potential issues. A 60-day free demo of TruTest™ is available, with options to upgrade to the Lite or Advanced version based on your testing needs.

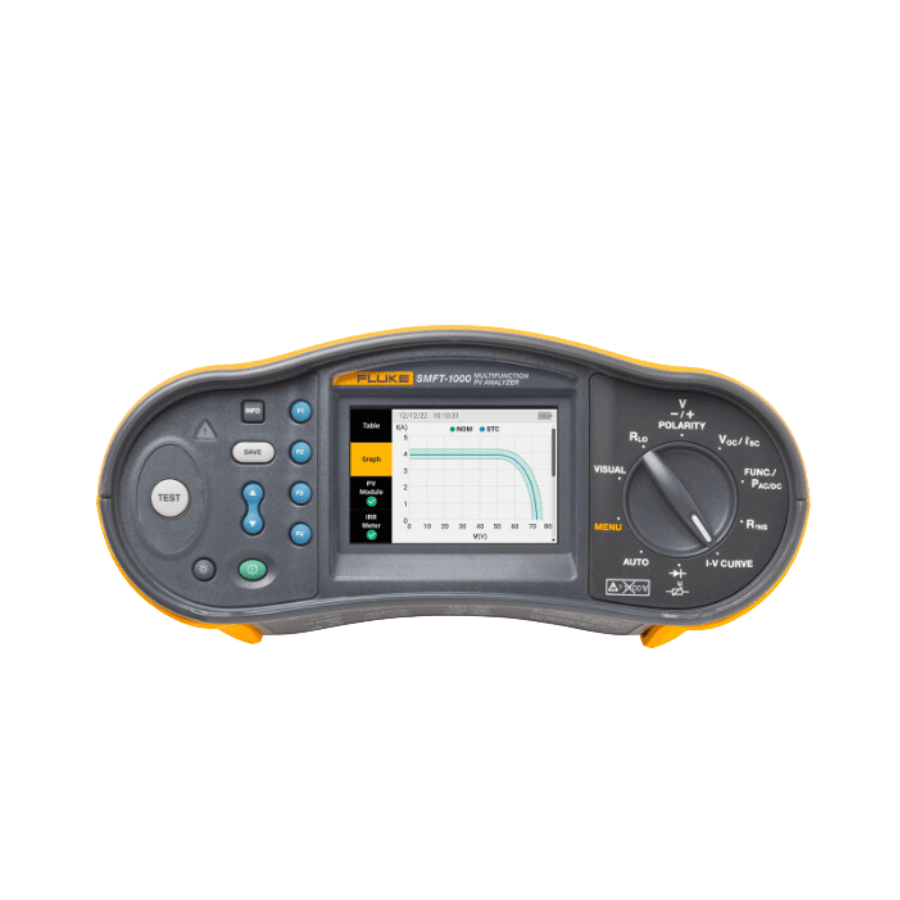

The SMFT-1000 is also built with user convenience in mind, featuring an intuitive colour screen with integrated on-screen instructions. Auto Test Mode further simplifies the testing process by allowing users to conduct a full range of tests with minimal input.

This powerful toolset, combined with the convenience of a rugged, portable design, makes the SMFT-1000 an ideal solution for PV professionals needing reliable and efficient equipment for installation, commissioning, and maintenance.

Key Features

• Complete PV testing solution, designed for systems up to 1000V DC
• Meets IEC 62446-1 standards for performance and safety
• Open-circuit voltage measurement up to 1000V DC
• Short-circuit current measurement up to 20A DC
• I-V curve tracer compares data to manufacturer specs in real-time
• Compatible with Fluke TruTest™ software for easy data management and reporting
• Wireless irradiance meter provides real-time data up to 17 hours
• Full-sequence safety testing for protective resistance, insulation, and polarity
• Auto Test Mode streamlines multiple test sequences
• “Keep the Leads” system reduces errors and set-up time
• On-screen instructions for guided testing
• Measures PV module efficiency up to 19%
• Insulation resistance measurement up to 199.9MΩ
• Visual inspection recording feature with TruTest™ integration
• Supports Class I and Class II protection testing
• Fluke Premium Care option for extended coverage beyond warranty
