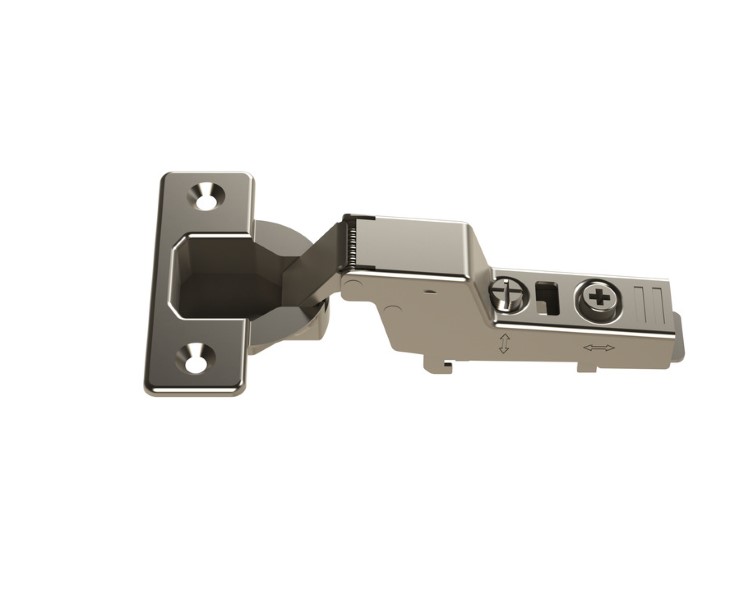

HAFELE 311.04.002 Concealed Hinge Soft Close Smuso Inset (HINGE)

Concealed Cup Hinge, new Smuso range, 110deg Integrated Soft Close, Inset Door Mounting, with Standard Depth Adjustment.

Screw fixing cup, quick fixing arm, 45/9.5 mm

Order mounting plate seperately.

35 mm dia cup
Automatic closing
Drilling pattern: 45/9.5 mm
Adjustment facility: Side adjustment +3 mm. Height adjustment 2mm (via mounting plate). Depth adjustment 2mm

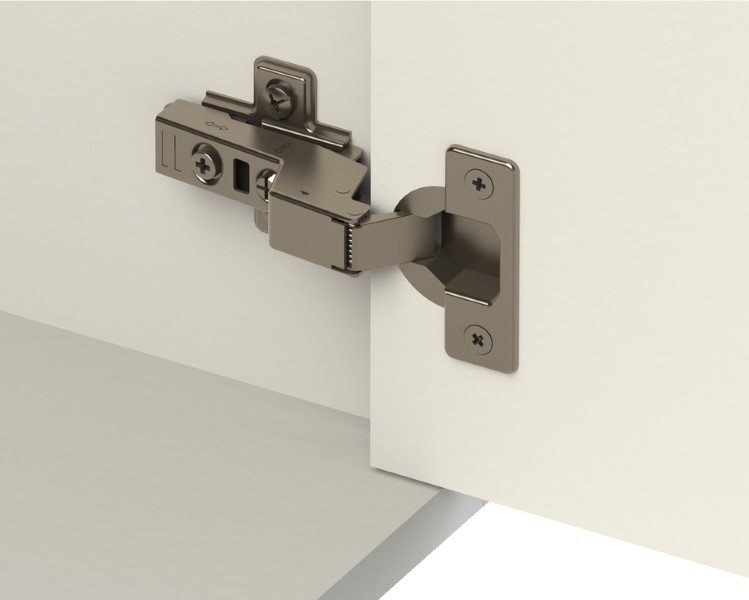

Overlay: Inset
Hinge arm: Quick fixing
Cup fixing: Screw fixing
Type of closing: With integrated soft close
For door thickness: 14-26 mm
Opening angle: 110 deg
Drilling depth: 12 mm
Guarantee: 25 years
Material: Steel
Finish: Nickel plated

This item is available whilst stocks last. Please contact us for availability of additional stock.
