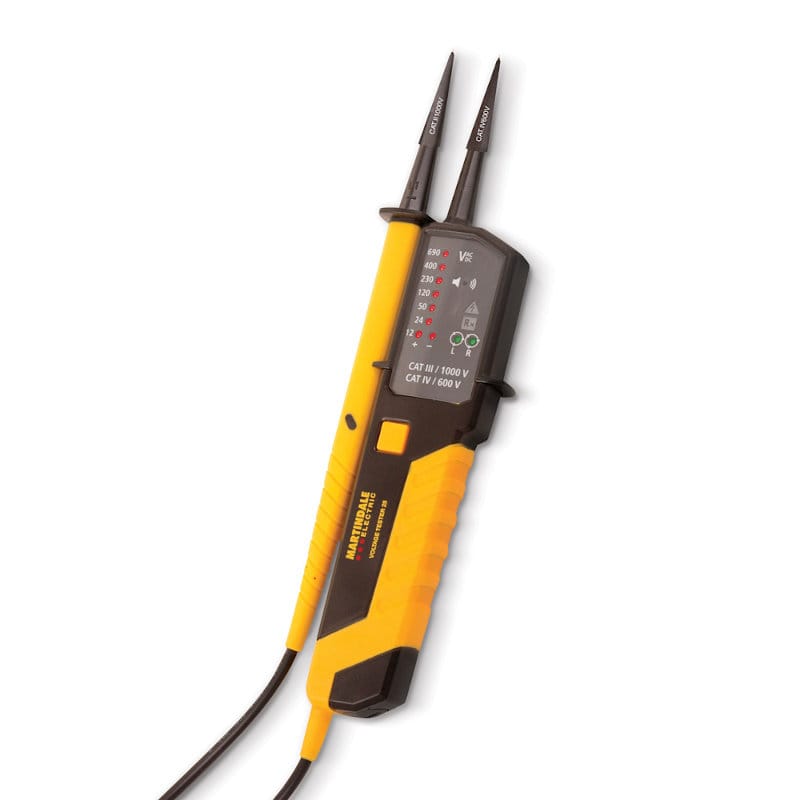

Martindale VT25 Two Pole Voltage & Continuity Tester

Martindale VT25 Two Pole Voltage & Continuity Tester

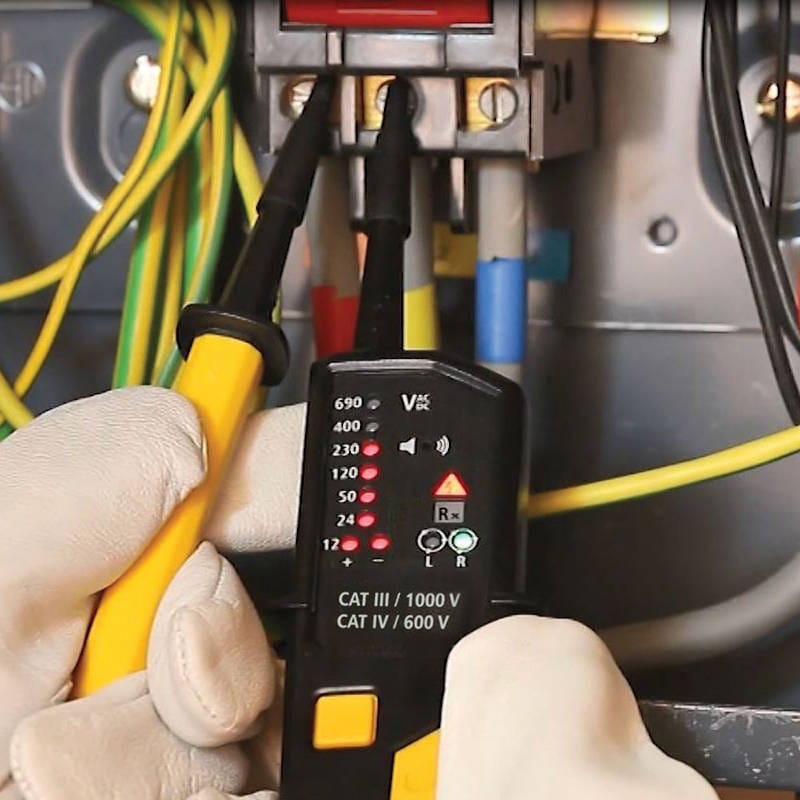

The Martindale VT25 Two Pole Voltage & Continuity Tester is a robust and compact tool designed for precise measurement of AC/DC voltages ranging from 12V to 690V. This versatile tester offers additional functions such as continuity testing, phase rotation, and single pole voltage detection, all highlighted by bright LED indicators. The built-in white LED torch ensures ease of use in dimly lit environments, while the auto power-off feature conserves battery life.

Safety is a priority with the VT25, conforming to BS EN 61243-3 and GS38 standards. The tester includes removable probe caps for compliance and a durable 1.2m double insulated cable with a contrasting inner core to signal any damage. This makes it a reliable tool for professionals working under stringent safety regulations.

The VT25 comes with optional accessories like a soft carry case, a proving unit, and a combination carry case for both. The complete kit, VT25PD, includes the tester, proving unit, and carry case, ensuring you have everything you need for compliance with the Electricity at Work Regulations.

Key Features

• Measures AC/DC voltages from 12V to 690V
• Bright LED voltage indication for clear readings
• Tests continuity with both LED and buzzer signals
• Performs single pole phase testing from 90V to 690V
• Capable of phase rotation testing between 100V and 690V
• Auto power-off function extends battery life
• Built-in white LED torch for use in low light
• Complies with BS EN 61243-3 and GS38 standards
• Includes removable probe caps for enhanced safety
• 1.2m double insulated cable with visual damage warning

Technical Specifications

• Voltage range: 12-690V DC/AC (16-400Hz)
• LED indication levels: ± 12, 24, 50, 120, 230, 400, 690V
• Single pole phase test range: 100-690V, 50-60Hz
• Phase rotation test range: 120-400V, 50-60Hz
• Continuity range: 0-500kΩ
• Removable GS38 caps
• Compliance: BS EN 61243-3 2014
• Cable length: 1.2m
• IP rating: IP64
• Auto power-off feature
• White LED torch
• Power supply: 2 x 1.5V AAA batteries
• Weight: 130g (with batteries)
• Dimensions: 205 x 67 x 27mm
