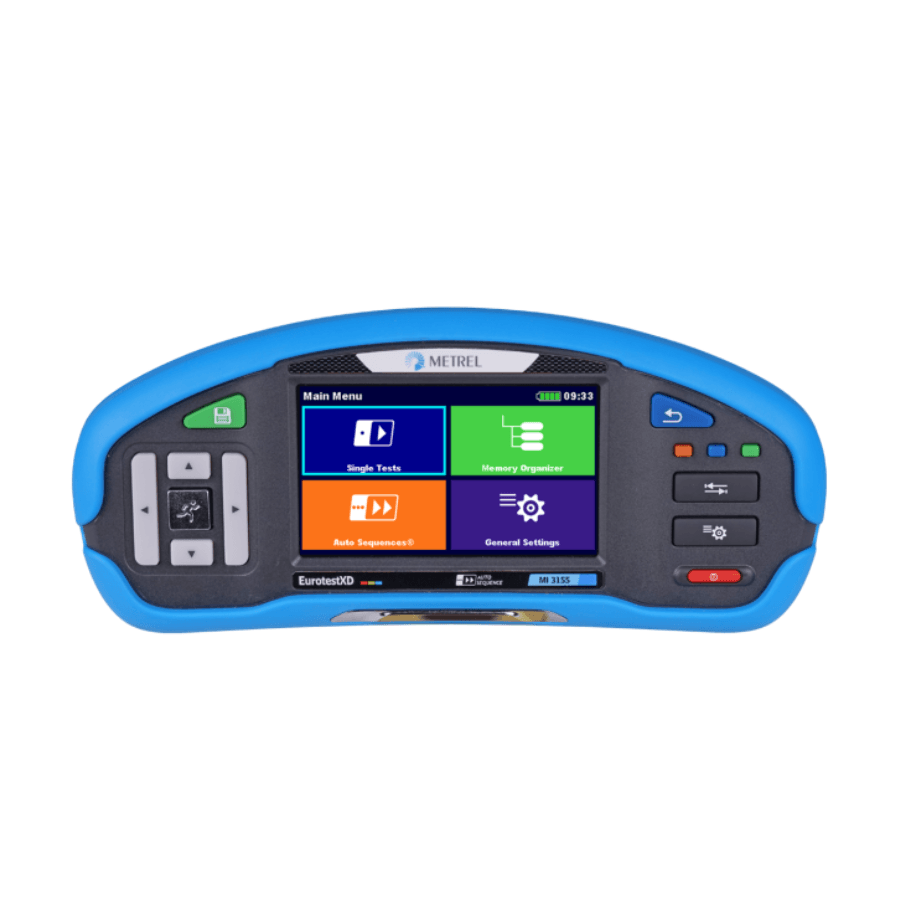

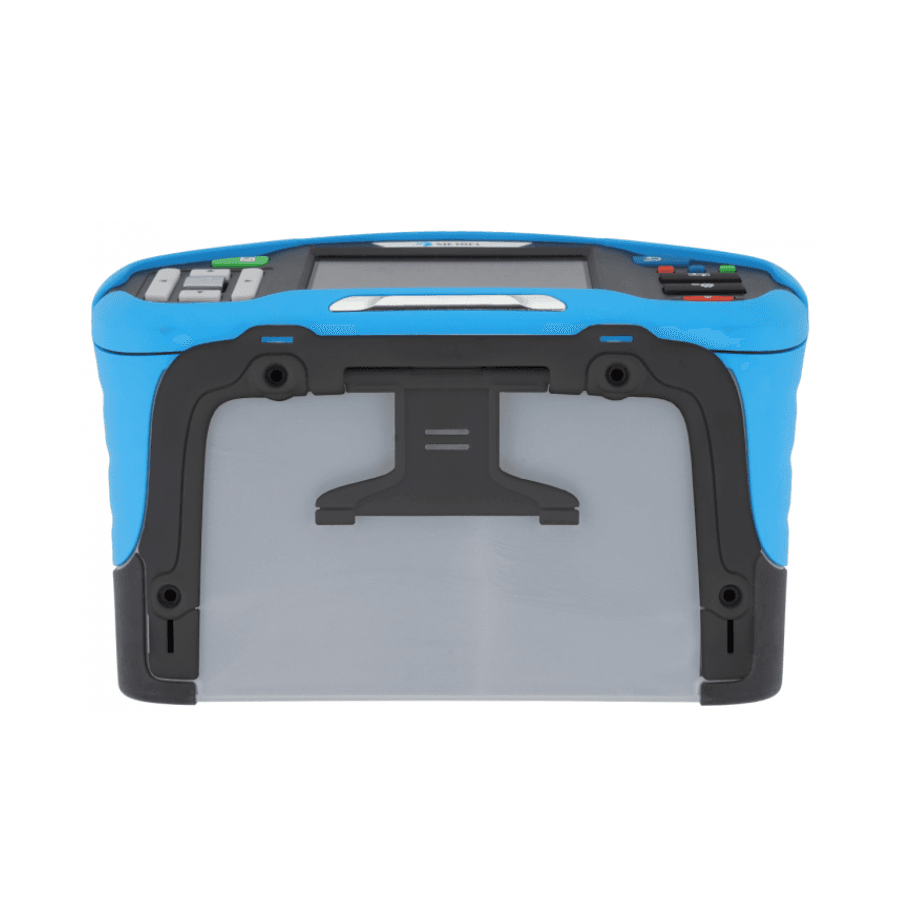

Metrel MI3155 Eurotest XD Multifunction Tester

Metrel MI3155 Eurotest XD Multifunction Tester

The Metrel MI3155 Eurotest XD Multifunction Tester is engineered for complex, high-precision testing. It supports both single and three-phase electrical installations. This tester is ideal for a wide range of applications, including medical installations, mobile generators, and electric vehicle charging. With its advanced testing capabilities, it suits both simple and sophisticated installations. The MI3155 is designed with professional electricians in mind. It includes a broad range of options, from loop impedance testing to insulation resistance, providing a complete solution for almost any testing need.

The MI3155 is efficient, reliable, and feature-rich. It offers customised and pre-programmed AUTO SEQUENCE testing, making it easy to perform tests on TT, TN/RCD, TN, and IT systems. Its colour touchscreen display and intuitive interface allow for effortless navigation. Bluetooth connectivity and a large onboard memory make data transfer to PCs or smart devices quick and seamless. The Metrel ES Manager software is also included. This software enables users to generate reports, analyse results, and transfer data. The MI3155 is an excellent choice for those who need versatility and functionality in their testing equipment.

Advanced Testing Options for Maximum Versatility

In addition to its core testing functions, the Metrel MI3155 includes advanced capabilities such as four-wire loop impedance testing on live transformers and a Trip Lock RCD function. Its continuity testing is equally advanced, featuring a 200mA test and a unique 7mA test that avoids tripping RCDs. The insulation resistance function operates across a wide range of voltages, from 50V to 2500V, with both PI and DAR testing options, making it ideal for high-demand environments. Additional functions include power and distortion assessment, first fault leakage currents, phase sequence indication, and voltage testing across a frequency range of 16Hz to 400Hz.

Comprehensive Features for Reliable Performance

Moreover, the MI3155 is fully equipped for electric vehicle charging point testing when used with an A1532 adaptor, adding another layer of versatility. The integrated rechargeable battery system, along with the power supply adaptor, ensures that users have consistent power throughout testing sessions. Its lightweight design and ergonomic build make it portable and suitable for various testing environments, from outdoor sites to high-frequency installations.

For earth resistance testing, this multifunction tester offers both three-wire and two-clamp methods. These options ensure users can achieve highly accurate results in any testing context. The device also includes added safety features, such as a robust overvoltage protection category and double insulation. These features add an extra layer of reliability, protecting both the device and the user in challenging environments. The MI3155 combines a comprehensive range of test functions with smart features like Bluetooth, a colour touchscreen, and onboard memory. These capabilities position it as a leader in installation testing solutions.

With intuitive operation and substantial onboard memory, this multifunction tester streamlines testing processes, saving time while maintaining precision. It includes an easy-to-access database for storing and organising test results, with connectivity options for both PC and smart devices. Metrel ES Manager software is also included, facilitating efficient report generation, data analysis, and transfer. These features make the MI3155 an ideal tool for electricians who need flexibility, accuracy, and ease of use in their testing equipment.
